20ft Plant Room Container

This simple conversion was the starting point for a bespoke plant room for a heating and hot water company. We worked together with another company based in Taunton to develop the shell designs for the plant room.

0
1

Container(s)

0
150

SQ FT

0
10

DAYS IN TOTAL

Taunton

Container
Case Study

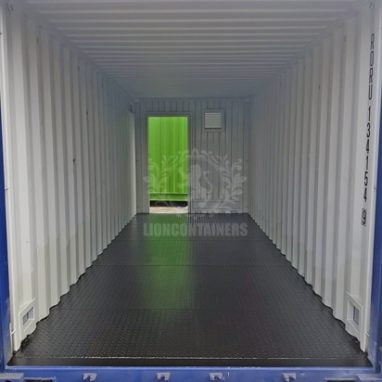

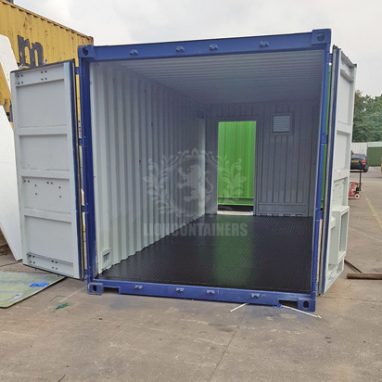

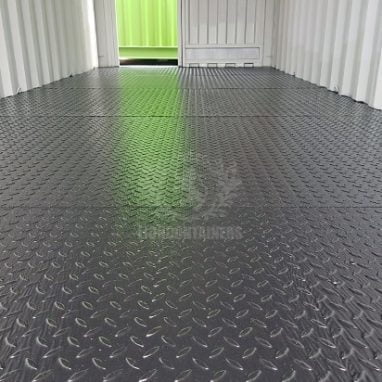

We shunted a 20ft new (once shipped) container in blue RAL5013 to our conversions depot in Warrington. Our team there carried out some modification to the container which included installing 3mm steel durbar flooring.

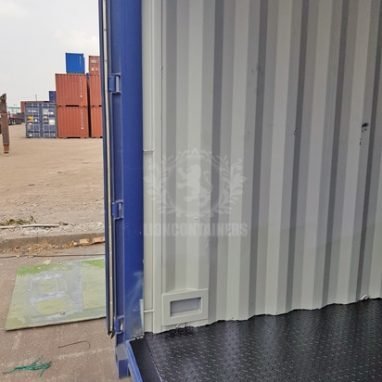

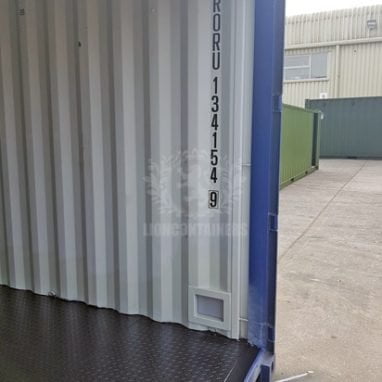

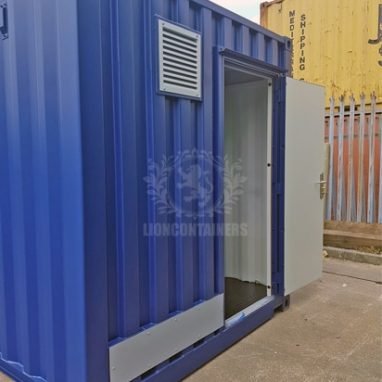

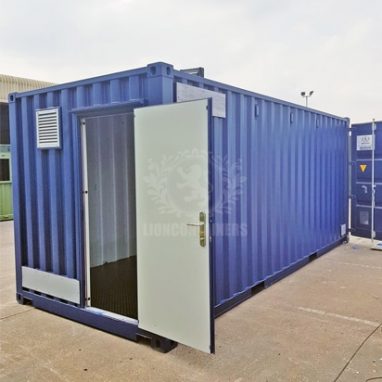

The durbar was stitch welded to the container and the joints were sealed, the new flooring overlaid the original marine ply container floor. The durbar flooring was then painted with black chip resistant, 2 pack poly paint. We also installed a single personnel door to the container, high and low level louvre vents for air flow and a number of gland plates which would be used for installing the end users equipment.

Case Study

Summary

The container was delivered to our client in Taunton for further works before its final trip to the end user.

Project

Vitals

  • Location

    Taunton

  • Container Size (Sq Ft)

    150

  • Duration (days)

    10

  • Containers Used

    1
