40ft Tunnel Containers with Lighting and Durbar Flooring Case Study

We received an enquiry from a Glasgow based company who specialise in the fabrication of cement mixers. They required two new 40ft tunnel containers to store the materials and paint that are used in the manufacture of their products.

0
2

Container(s)

0
300

SQ FT

0
50

DAYS IN TOTAL

Glasgow

Container
Case Study

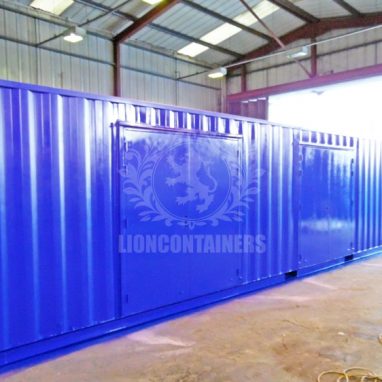

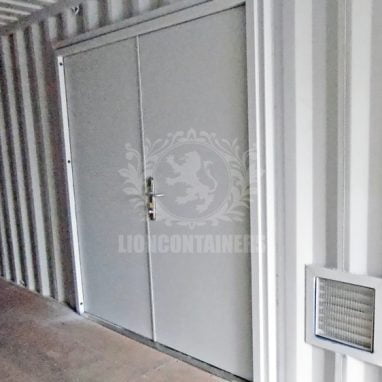

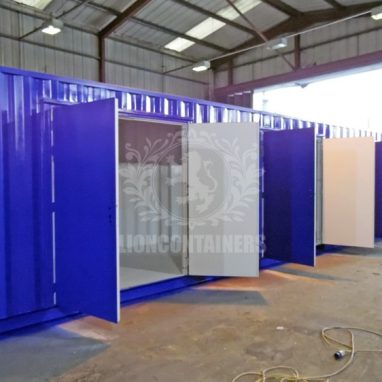

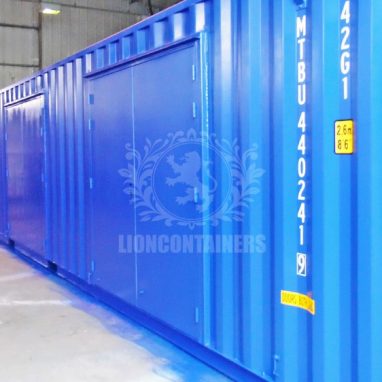

A double personnel door was supplied and installed in the 40ft side of one container, and 3 x double personnel doors supplied and installed in the 40ft side of the other container. Each of these measured W 1894mm x H 2065mm (including frame) and were insulated and weatherproof. The internal size of the doors were 1784mm x 1995mm, and they were outward opening with a 90 degree full opening of 1660mm and a 180 degree full opening of 1784mm. The locking system was 10 point with a 5 pin anti-drill euro profile cylinder with full door furniture. Tie backs were included to prevent the door slamming and as was rain run-off strips above the door.

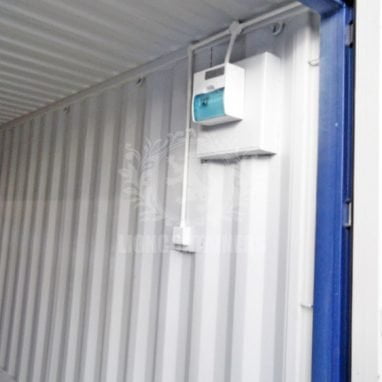

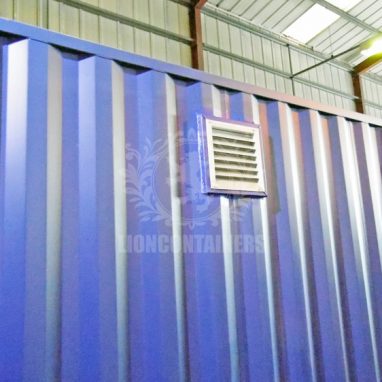

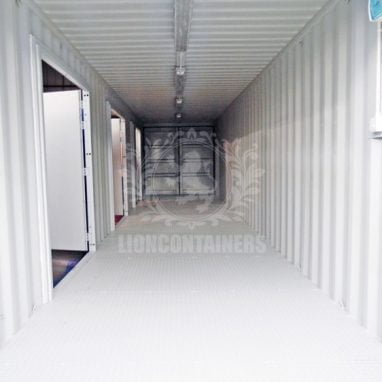

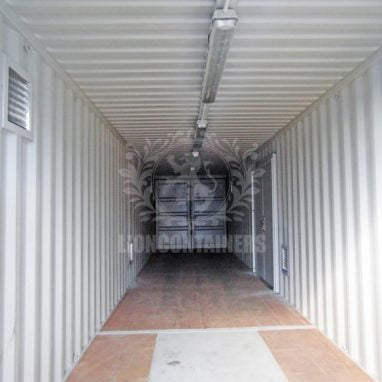

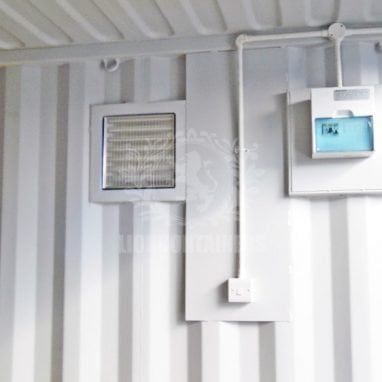

Each container had lighting installed, and this included 4 x 5' twin anti-corrosive light fittings and switches, a distribution board and an external blue single phase commando socket was also included. After discussing air flow and condensation prevention options with our client, we suggested 4 x 45 degree louvered vents which the client agreed on and we then installed; each measured 300mm x 300mm. This was installed in one of the containers. 3mm Durbar floor was overlaid on the existing marine ply floor of one of the containers, this was stitch welded with sealed joints. High security steel lockboxes were fitted to all cargo doors on each container.

Case Study

Summary

The containers were delivered on time, and to our clients bespoke specification.

Project

Vitals

  • Location

    Glasgow

  • Container Size (Sq Ft)

    300

  • Duration (days)

    50

  • Containers Used

    2
